Enhance an existing app using test driven development

The code in both targets of our project coexist in the same project but technically act like complete strangers to each other. 😒🧐 In technical terms, they form different modules.

If you attempt to use the Game class or any other class in the tests code, Swift will get puzzled and assume it's an error. 😱

No need to panic! To resolve this, all we need to do is import the main module to the tests. 😎

The module name matches the name of the corresponding target, so for our main application, it will be  TicTacToe !

Let's now import it to the tests by including the following line:

import TicTacToe

Now the application module is imported to your test file.

This is good, but not enough. To understand why, let's do a little refresher of access control.

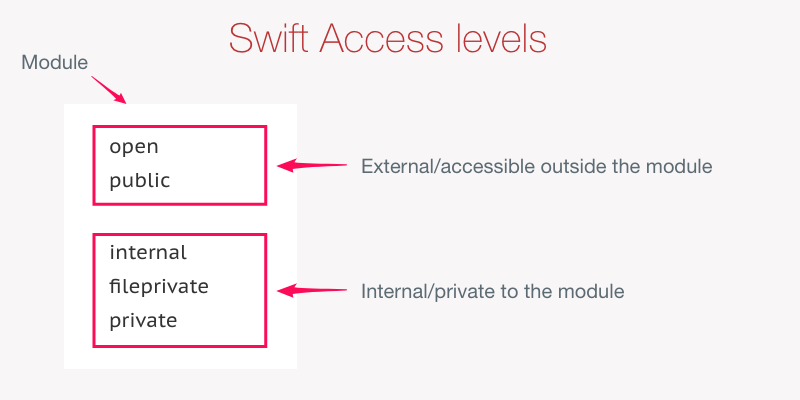

There are 5 access levels - let's illustrate them in relation to a module:

Internal is the default level (it's assigned automatically if we don't specify a level explicitly). At this level, the scope of classes and their members is limited to the module that contains the class. Considering this, our Game class and all its methods are not available outside of the main application. So when we import the TicTacToe module to the test code, we sill don't have access to Game and the other classes of the main application - because they are part of a different module.

We've got two options to solve this:

1. Modify the classes and methods of the main application so that they are all public. This would take quite some time - and imagine working with a much larger project! On top of that, it's not secure. Those classes and class members are probably not public for a reason, so we can't change all that just for the sake of making it available for testing!

2. Use the  @testable  decorator. It's placed before importing a module we intend to test. This is like the imported module will pretend to be part of the module it's being imported in. Looks like this is a more suitable option to solve our problem! 😎

So, let's make this adjustment:

@testable import TicTacToe

We now have access to the Game class and we'll be able to test it!

We can delete the testExample, and replace it with a real deal!

To name the tests, I suggest using a very practical technique called Behavior Driven Development - development motivated by behavior (BDD for short). BDD suggests creating test names as a composition of 3 parts,  Given_When_Then  :

1. Given - The given part describes the state of the world before you begin the behavior you're specifying in this scenario. You can think of it as the pre-conditions to the test.

2. When - The when section is that behavior that you're specifying.

3. Then - The then section describes the changes you expect due to the specified behavior.

For example, if we had to name a test that validates the functionality of a "Like" activity, it could be:

GivenPostHasZeroLikes_WhenPostIsLiked_ThenPostHasOneLike
// GIVEN - post has ZERO likes
// WHEN - post is LIKED
// THEN - posy has ONE like

We figured we're going to test the Game class, so we'll need an instance of that class. For that we could declare a constant in our test file:

let game = Game()

However, this may not be the best idea as we'll likely need more than one test and each of them will use the same stance of the Game object. It might be unnecessarily challenging to always reset it to a needed state.

Likely, there's a method in the test class that is called every time before any test is executed. All we need to do is override it:

    var game: Game!

    override func setUp() {

        super.setUp()
        game = Game()
    }

It's good now. We are ready for the first test.

Test 1. Validate the current card and next player on advance

Let's validate our code for the situation when we have a brand new game and, while making the first advance, we expect the title of the advanced card to be 'X' and the next player - Player2:

    func testGivenGameIsAtStart_WhenAdvanced_ThenCardShouldBeMarkedWithXAndNextPlayerTwo() {

        let title = game.advance(atIndex: 0)

        XCTAssertEqual(title, "X")
        XCTAssertEqual(game.nextPlayer, .two)
    }

Let's analyze:

• Assuming the game is at its very beginning (that's guaranteed by the setUp method), we've advanced the game for the first time and captured the card title - the  title  constant.

• We've evaluated the  title  constant value against the expected value, "X."

• We've evaluated the  nextPlayer  property value against the expected value,  .one .

Done! Let's test it - run the test and observe that it turns GREEN! 💚

Prepare for the future

We can anticipate that while testing this game we'll have to advance through the game a lot. Instead of repeating the same lines a specific number of times.

Let's implement a few helper elements:

    enum WinningVariant {
        case row, column, diagonalOne, diagonalTwo
    }

    func makeWinningIndices(player: Player, variant: WinningVariant) -> [Int] {
        switch variant {
        case .row: return player == .one ? [0, 7, 1, 8, 2] : [6, 0, 7, 1, 8, 2]
        case .column: return player == .one ? [0, 1, 3, 5, 6] : [7, 0, 1, 3, 5, 6]
        case .diagonalOne: return player == .one ? [0, 1, 4, 5, 8] : [7, 0, 1, 4, 5, 8]
        case .diagonalTwo: return player == .one ? [2, 1, 4, 5, 6] : [7, 2, 1, 4, 5, 6]
        }
    }

    func makeDrawIndices() -> [Int] {
        return [0, 3, 6, 2, 5, 8, 1, 4, 7]
    }

    func advance(indices: [Int]) {
        for i in 0 ..< indices.count {
            _ = game.advance(atIndex: indices[i])
        }
    }

Let's review the above:

• In this game it's essential to test the winning situations, so here we are creating an assisting enumeration specifying those variants: WinningVariant .

• We've implemented a function that will generate sample sequences of indices for each of the winning variants.

• We've got a similar function that will generate advancing indices for the draw situation.

• And finally, we've created a function that will advance the game filling up the cards according to the indices passed in a parameter. Notice here we don't need to specify a player as the playing turns are alternating within the advance method of the game object.

Good! We are now all set and ready to continue! 🙌

Test 2. Validate "row game over" for player one

In this test, we'll advance our game to the winning position in a row for player one and validate 3 elements:

• The  game.isOver  property is expected to be true.

• The  game.winner property is expected to be .one.

• The  game.winningIndices properties are expected to be not nil.

    func testGivenGameIsAtStart_WhenAdvancedWithCrossesInRowOne_ThenGameShouldBeOverWithWinnerAsPlayerOneAndWinningIndicesNotNil() {

        advance(indices: makeWinningIndices(player: .one, variant: .row))

        XCTAssertTrue(game.isOver)
        XCTAssertEqual(game.winner, .one)
        XCTAssertNotNil(game.winningIndices)
    }

Execute the test... It works again!

Test 3. Validate "column game over" for player two

In this test, we'll advance our game to the winning position in a column for player two and validate 3 of the same elements as in our previous test. Except this time, we expect the value of the  game.winner  property to be .two:

    func testGivenGameIsAtStart_WhenAdvancedWithZerosInRowOne_ThenGameShouldBeOverWithWinnerAsPlayerTwoAndWinningIndicesNotNil() {

        advance(indices: makeWinningIndices(player: .two, variant: .row))

        XCTAssertTrue(game.isOver)
        XCTAssertEqual(game.winner, .two)
        XCTAssertNotNil(game.winningIndices)
    }

Run the test... It works!

Test 4-6. Validate remaining winning situations

In the next 3 tests, we'll validate the remaining winning situations: column and diagonals 1 and 2 for player two. For this, it's sufficient to validate only the game.winner  property to be not nil:

    func testGivenGameIsAtStart_WhenAdvancedWithCrossesInColumnOne_ThenWinnerShouldBeNotNil() {

        advance(indices: makeWinningIndices(player: .two, variant: .column))

        XCTAssertNotNil(game.winner)
    }

    func testGivenGameIsAtStart_WhenAdvancedWithCrossesInDiagonalOne_ThenWinnerShouldBeNotNil() {

        advance(indices: makeWinningIndices(player: .two, variant: .diagonalOne))

        XCTAssertNotNil(game.winner)
    }

    func testGivenGameIsAtStart_WhenAdvancedWithCrossesInDiagonalTwo_ThenWinnerShouldBeNotNil() {

        advance(indices: makeWinningIndices(player: .two, variant: .diagonalTwo))

        XCTAssertNotNil(game.winner)
    }

Run the tests... All 3 are in tact!

Test 7. Validate the draw situation

The last test for the game class we'll need to do is to validate the draw situation. In this function, we'll also validate 3 components. Just expect different values:

• The  game.isOver  property is expected to be true.

• The  game.winner   property is expected to be nil.

• The  game.winningIndices  properties are expected to be nil.

    func testGivenGameIsAtStart_WhenAdvancedToFill_ThenGameShouldBeOverWithWinnerAsNilAndWinningIndicesAsNil() {

        advance(indices: makeDrawIndices())

        XCTAssertTrue(game.isOver)
        XCTAssertNil(game.winner)
        XCTAssertNil(game.winningIndices)
    }

Run the test... Observe that it works! You are awesome! 😊

• The names of the tests are written following Behavior Design Development as a composition of  three parts: Given, When, Then.

• The  setup  method is recalled before each test. It ensures initialization.

• Test code must be treated the same way as the main code - nice and clean. Refactoring is encouraged!

• There are several variants of  XCTAssert . It's best to use the most suitable version for each test to improve the readability and clarity of the intentions of the tests.
