Simulate Your Network Diagram With Cisco Packet Tracer

Create the VLANs

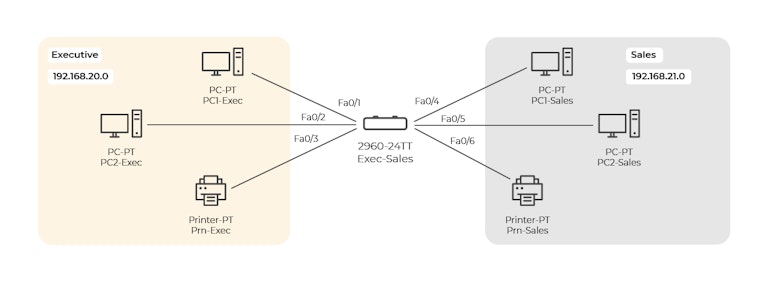

You’re now going to create your first VLANs. Firstly, let’s look at the Exec-Sales switch. And because I’m very kind, I’m going to give you the diagram with the interface names on it:

For the Exec-Sales switch, we need to create 5 VLANs:

To create VLANs, you need to enter the following commands:

Right, I’m going to show you the full configuration for the Exec-Sales switch:

Exec-Sales# configure terminal
Exec-Sales(config)# vlan 20
Exec-Sales(config-vlan)# name Executive
Exec-Sales(config-vlan)# exit
Exec-Sales(config)# vlan 21
Exec-Sales(config-vlan)# name Sales
Exec-Sales(config-vlan)# exit
Exec-Sales(config)# vlan 40
Exec-Sales(config-vlan)# name Printing
Exec-Sales(config-vlan)# exit
Exec-Sales(config)# vlan 50
Exec-Sales(config-vlan)# name Telephony
Exec-Sales(config-vlan)# exit
Exec-Sales(config)# vlan 100
Exec-Sales(config-vlan)# name Administration
Exec-Sales(config-vlan)# end

Okay, I’ll go through it in a video, too:

Now that you can do it on your own, I’ll leave you to do the other switches. But I’ll help you out by giving a list of VLANs for each switch:

Assign the VLANs

To assign a VLAN to an interface, you need to enter the following commands:

Right, I’m going to show you the full configuration for the Exec-Sales switch:

Exec-Sales (config)# interface fa0/1
Exec-Sales(config-if)# switchport mode access
Exec-Sales(config-if)# switchport access vlan 20
Exec-Sales(config-if)# exit
Exec-Sales(config)# interface fa0/2
Exec-Sales(config-if)# switchport mode access
Exec-Salesconfig-if)# switchport access vlan 20
Exec-Sales(config-if)# exit
Exec-Sales(config)# interface fa0/3
Exec-Salesconfig-if)# switchport mode access
Exec-Salesconfig-if)# switchport access vlan 40
Exec-Sales (config-if)# exit
Exec-Sales(config)# interface fa0/4
Exec-Salesconfig-if)# switchport mode access
Exec-Sales(config-if)# switchport access vlan 21
Exec-Sales(config-if)# exit
Exec-Sales(config)# interface fa0/5
Exec-Sales(config-if)# switchport mode access
Exec-Sales(config-if)# switchport access vlan 21
Exec-Sales(config-if)# exit
Exec-Sales(config)# interface fa0/6
Exec-Sales(config-if)# switchport mode access
Exec-Sales(config-if)# switchport access vlan 40
Exec-Sales(config-if)# exit

This can also be found in the following video:

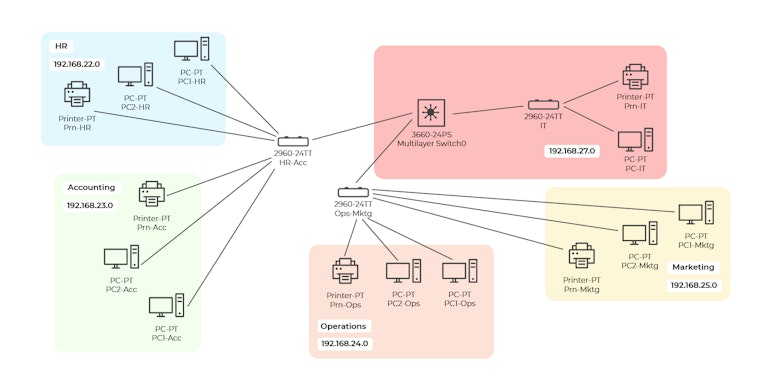

Assign VLANs to the various interfaces on the HR-Acc, Ops-Mktg and IT switches to match the following diagram:

Add IP Telephony to Your Organization

Add IP Telephones in Cisco Packet Tracer

You’re now going to add IP telephony to your organization—but don’t hate me, because you’re going to look at that network diagram again! You'll need to add IP phones between your computers and the switch interface.

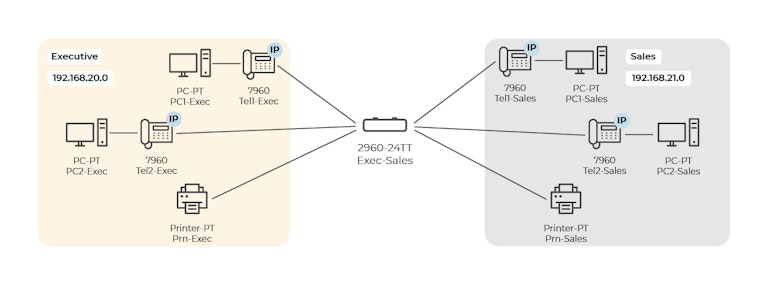

This is what the end devices connected to the Exec-Sales switch should look like.

Don’t worry if you found it difficult. I’ll show you how to add your IP phones in this video:

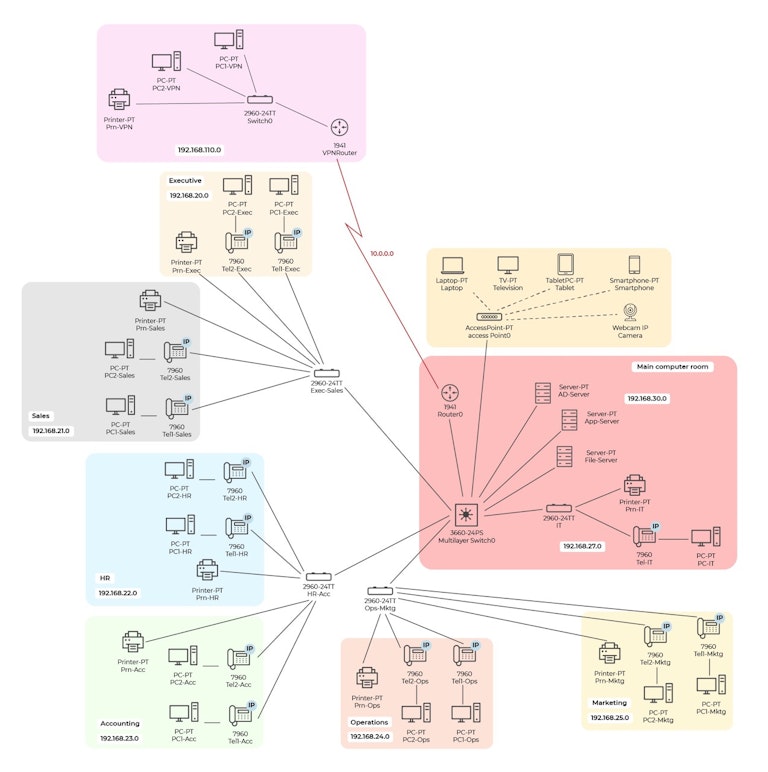

So, by the end of it, your network diagram should look like this:

Configure IP Telephony on the Switches

Okay, cool, I’ve added my IP telephones. But if I test the comms (ping), it doesn't work anymore—even between machines on the same subnet!

Don't worry! You need to configure the switches to tell them that the voice VLAN must be configured on the ports where the IP telephones are connected.

Since you’ve already created the Telephony VLAN, you now need to:

• enable Quality of Service on the interfaces. This ensures the correct conditions are applied to different traffic types.

• assign a voice VLAN to each interface where an IP phone is connected.

Here’s the full configuration for the Exec-Sales switch:

Exec-Sales(config)# int f0/1
Exec-Sales(config-if)# mls qos trust cos
Exec-Sales(config-if)# switchport voice vlan 50
Exec-Sales(config-if)# exit
Exec-Sales(config)# int f0/2
Exec-Sales(config-if)# mls qos trust cos
Exec-Sales(config-if)# switchport voice vlan 50
Exec-Sales(config-if)# exit
Exec-Sales(config)# int f0/4
Exec-Sales(config-if)# mls qos trust cos
Exec-Sales(config-if)# switchport voice vlan 50
Exec-Sales(config-if)# exit
Exec-Sales(config)# int f0/5
Exec-Sales(config-if)# mls qos trust cos
Exec-Sales(config-if)# switchport voice vlan 50
Exec-Sales(config-if)# exit

And here’s the configuration in video form:

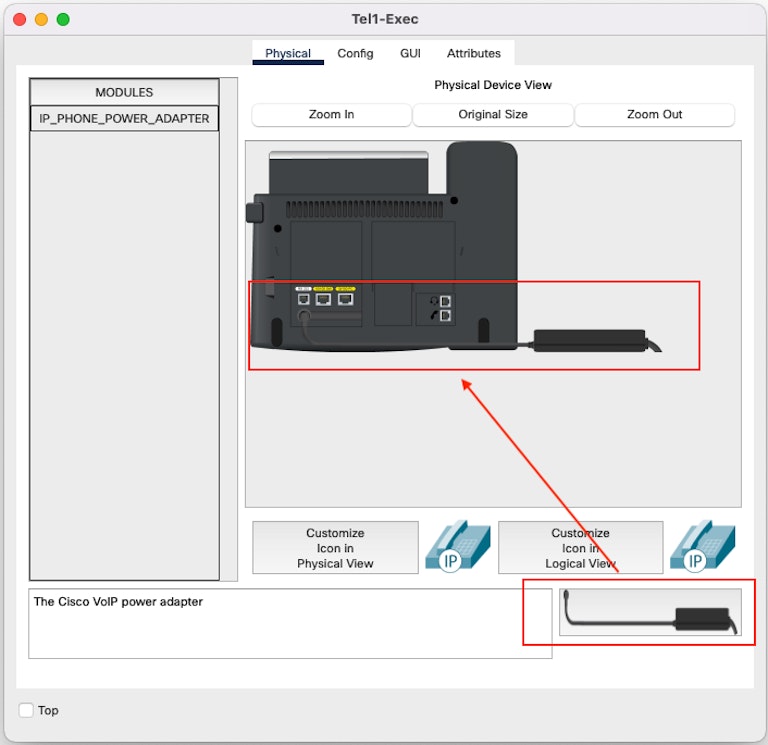

When you add IP telephones, don't forget to provide a power supply. We didn't do this before. To do this, select the power adapter by dragging it towards the power adapter port.

Here’s a short video to show you how to attach VoIP telephones to a power supply.

Let's Recap!

In this chapter, you’ve seen that:

• the command vlan VLAN_Number allows you to create a VLAN, while the command switchport access vlan VLAN_Number allows a VLAN to be assigned to a port.

• the command switchport voice vlan VLAN_Number enables you to add VoIP telephones and configure switches to incorporate VLAN telephony.

Now you know a few different configurations. Let’s continue looking at VLAN parameters in the next chapter.
